marine vertical double-stage double-outlet centrifugal pump manufacturer from China DEYUAN China Marine Fitting Co.,Ltd

marine vertical double-stage double-outlet centrifugal pump

Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Delivery Date: 7days

Packing: wooden case

1.centrifugal pump.
2.suitable for fluid drive system.
3.competitive price.
4.advanced techniques

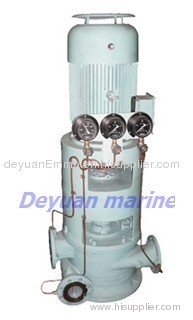

marine vertical double-stage double-outlet centrifugal pump

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

CLN Series marine vertical double-stage double-outlet centrifugal pump is used to deliver fresh water and seawater,widely used for cooling,fire control,chamber loading and other general water drainage.It can be used as the alkali liquid pump and distilling pump in seawater desalination.It can also be used for industrial and urban water supply.The temperature of delivery medium shall not be over 80℃.

Generally,it can be used under the follwing conditions:

Using stage	First-stage outlet pipe	Second-stage outlet pipe	functions
1	open	closed	Ballast pump and bilge pump
2	closed	open	Deck flushing pump and fire pump

Type	(50HZ,3phase,380v)main technical parameter
	Capacity (m3/h)	Head (m)	Speed (R/min)	NPSHR (m)
	Capacity (m3/h)	Head (m)	Speed (R/min)	NPSHR (m)
CLN80-340/2A	51/51	29.5/65	1480	2.8
CLN80-340-2C	116/58	24/61	1480	3.4
CLN80-340-2D	112/54	15/51.5	1480	4.3
CLN80-340-2E	141/62	25.5/59	1480	4.2
CLN100-380/2A	95/91	36.5/86	1480	4.1
CLN100-380/2C	149/95	27.5/77	1480	3.7
CLN100-380/2D	141/95	16.5/60.5	1480	3.6
CLN100-380/2E	199/99	23.5/69.5	1480	4.2
CLN125-380/2A	124/120	33.5/77	1480	4.0
CLN125-380/2C	215/120	23.5/65	1480	4.2
CLN125-380/2D	199/108	17/60.5	1480	4.2
CLN125-380/2E	257/124	24/68.5	1480	3.5
CLN150-380/2A	199/182	33/79	1480	5.1
CLN150-380/2C	248/174	22/71.5	1480	4.9
CLN150-380/2D	265/166	14.5/62	1480	4.2
CLN150-380/2E	389/182	22/70	1480	4.6
