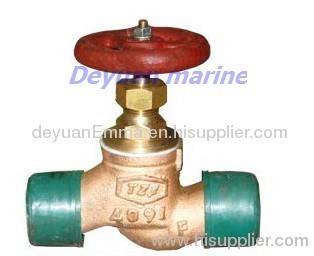

Marine Low Pressure Bronze Male Threaded Stop Check Valve

Price:	100.0~300.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Delivery Date: 7days

Packing: wooden case

Type:Marine Low Pressure Bronze Male Threaded Stop Check Valve
Model:A type&Btype
Diameter:DN6~32
Pressure:0.6~4.0Mpa
Material:bronze,cast i

Marine Low Pressure Bronze Male Threaded Stop Check Valve

China Deyuan Marine Fitting Co.,ltd are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API\ANSI,BS standard etc.Pls contact us for more details.

Nominal pressure(Mpa)	Nominal Diameter(mm)	Applicable Medium
1.6	6~32	Sea water,fresh water,lubricanting oil Fuel oil,t≤250℃ steam

DN (MM)	Structure dimension					Hand wheel		Weight(kg)
	L		H≈		H1	Hand wheel		Weight(kg)
	A type	Btype	Atype	Btype	B type	Do	S	Atype	Btype
6	78	34	90	77	32	50	6	0.34	0.28
10	80	34	90	78	32	50	6	0.40	0.32
DN15~32 Dimension
15	95	46	100	91	40	50	6	0.60	0.53
20	110	49	112	100	44	65	7	0.98	0.96
25	125	53	128	113	48	80	8	1.38	1.33
32	145	58	136	121	56	80	8	1.60	1.55
